小巧型P.C.B.繼電器（10 - 16A）
Compact PCB Relay
? small size, 15.4mm height
? sensitive DC coil: 250MW or 400MW
? extremely high coil contact isolation 10mm, 6 kV (1.2/50 μ s)
? anti flux penetration: standard is RT II, (RT III option)
? 3.2mm or 5mm pin spacing

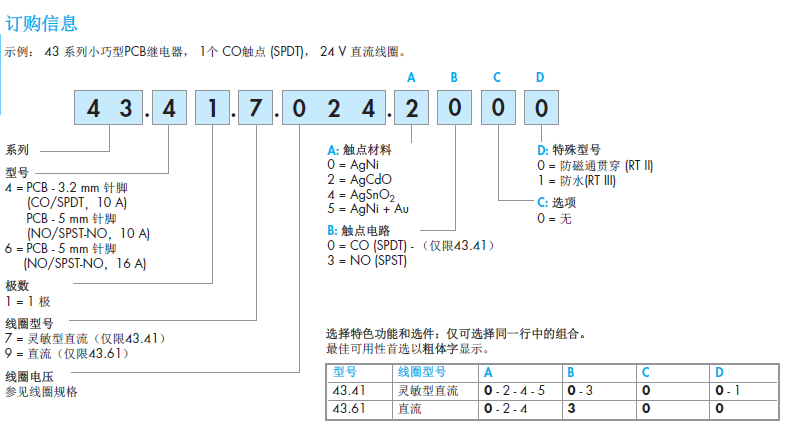

| model | forty-three point four one | 43.41-0300 | 43.61-0300 | |
| Contact specifications | ||||
| Contact configuration | 1 CO (SPDT) | 1 no (SPST-NO) | 1 no (SPST-NO) | |
| Rated current / maximum peak current a | 10/15 | 10/15 | 16/25 | |
| Rated voltage / maximum switching voltage V AC | 250/400 | 250/400 | 250/400 | |
| Rated load AC1 VA | two thousand and five hundred | two thousand and five hundred | four thousand | |
| Rated load ac15 (230 V AC) VA | five hundred | five hundred | seven hundred and fifty | |
| Single phase motor rating (230 V AC) kw | — | — | — | |
| Breaking capacity dc1:30/110/220 V A | 10/0.3/0.12 | 10/0.3/0.12 | 16/0.3/0.12 | |
| Minimum switching load MW (v/ma) | 300（5/5） | 300（5/5） | 300（5/5） | |
| Standard contact material | AgNi | AgNi | AgNi | |
| Coil specification | ||||
| Nominal voltage (UN) | V AC（50/60 Hz） | — | — | — |
| V DC |
3 - 6 - 9 - 12 - 18 - 24 - 36 - 48 |
3 - 6 - 9 - 12 - 18 - 24 - 36 - 4 |
12 - 24 - 48 | |
| Rated power ac/dc VA (50 Hz) /w | —/0.25 | —/0.25 | —/0.4 | |
| Operating range | AC | — | — | — |
| DC | （0.7…1.5）UN | （0.7…1.5）UN | （0.7…1.2）UN | |
| Holding voltage ac/dc | —/0.4 UN | —/0.4 UN | —/0.4 UN | |
| Required voltage ac/dc | —/0.05 UN | —/0.05 UN | —/0.05 UN | |
